Aspira AF-10 19x10.5 Square - Track Enthusiast

Regular price
Added to Cart! View cart or continue shopping.


Front/Rear: 19x10.5 ~ 23lbs @850kg

Confirmed to clear the following brakes

MPP 365mm Silver Caliper relocation kit

MPP Stoptech ST-60 368 and 380mm kits

AP Racing 372mm and 380mm kits

UP BFB kit

Recommended Tire size:

275/35/19 to 305/30/19

Special Notes:

1.  Highly recommend extended studs for the front axles so you can use hub centric slip on spacers to dial in the perfect backspacing for your specific rotor setup.

2.  Spacers will be needed to provide clearance to the front upright only.

Fitment Guidelines:  Only needed for front axles.  Perfect fitment for rear.

1.  OEM 2 piece rotors on Performance Model 3's will need to purchase the Aspira 10mm spacer, extended shank or slip on, netting a +23 ET due to the thinner OEM 2 piece rotor hat.  Recommended Front camber -3 to -3.5.  Extended studs are recommended for the front axles.

2.  Most other aftermarket BBK's and non oem 2 piece rotors can purchase the Aspira 5mm slip spacer.  Extended studs are recommended for the front axles.  Net +28 ET.

3.  Alignment, Front Camber -3 to -3.5, Rear Camber -2.5 to -2.7.

OEM Centercaps are not included. Model S and X caps will fit.

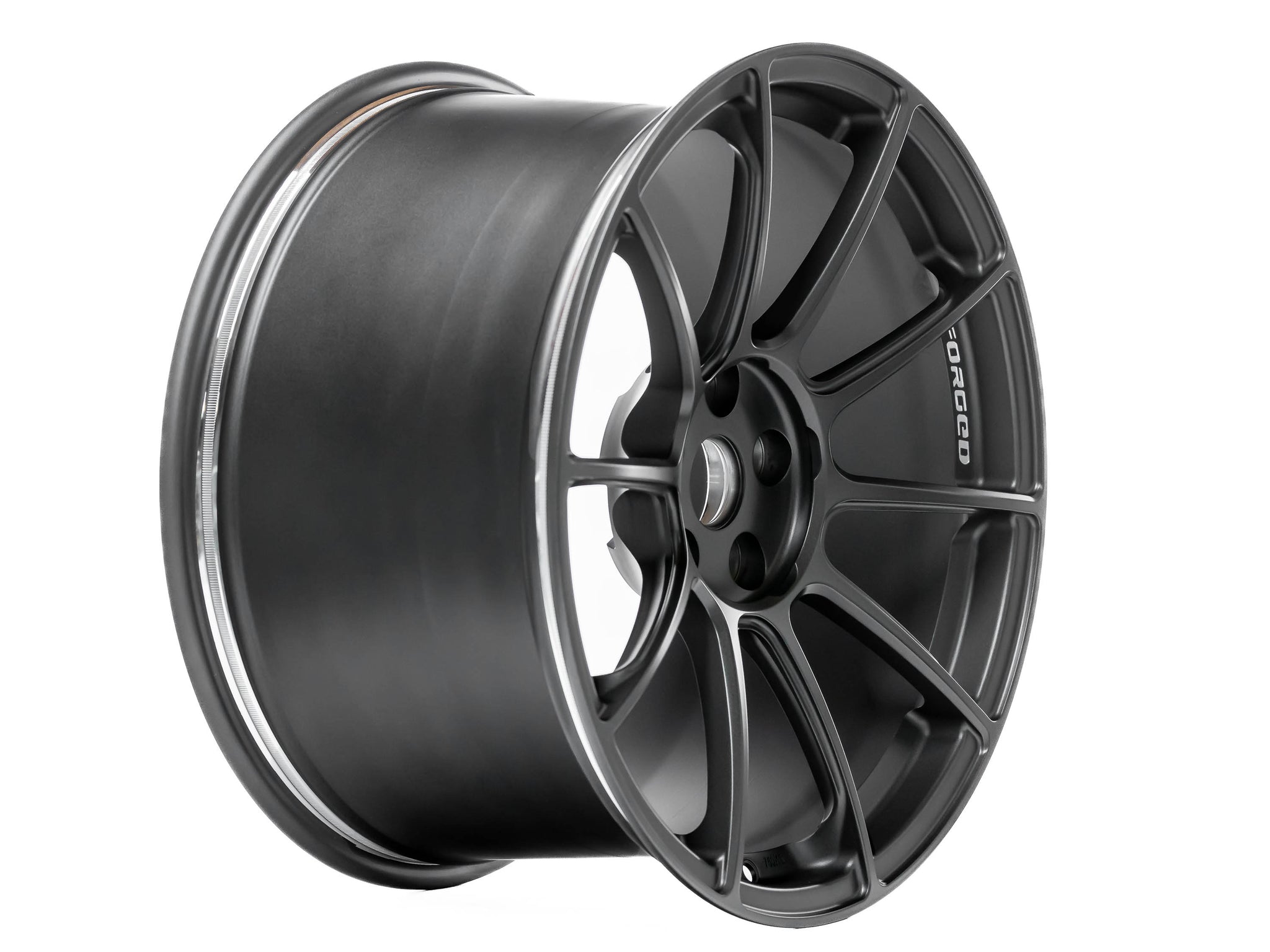

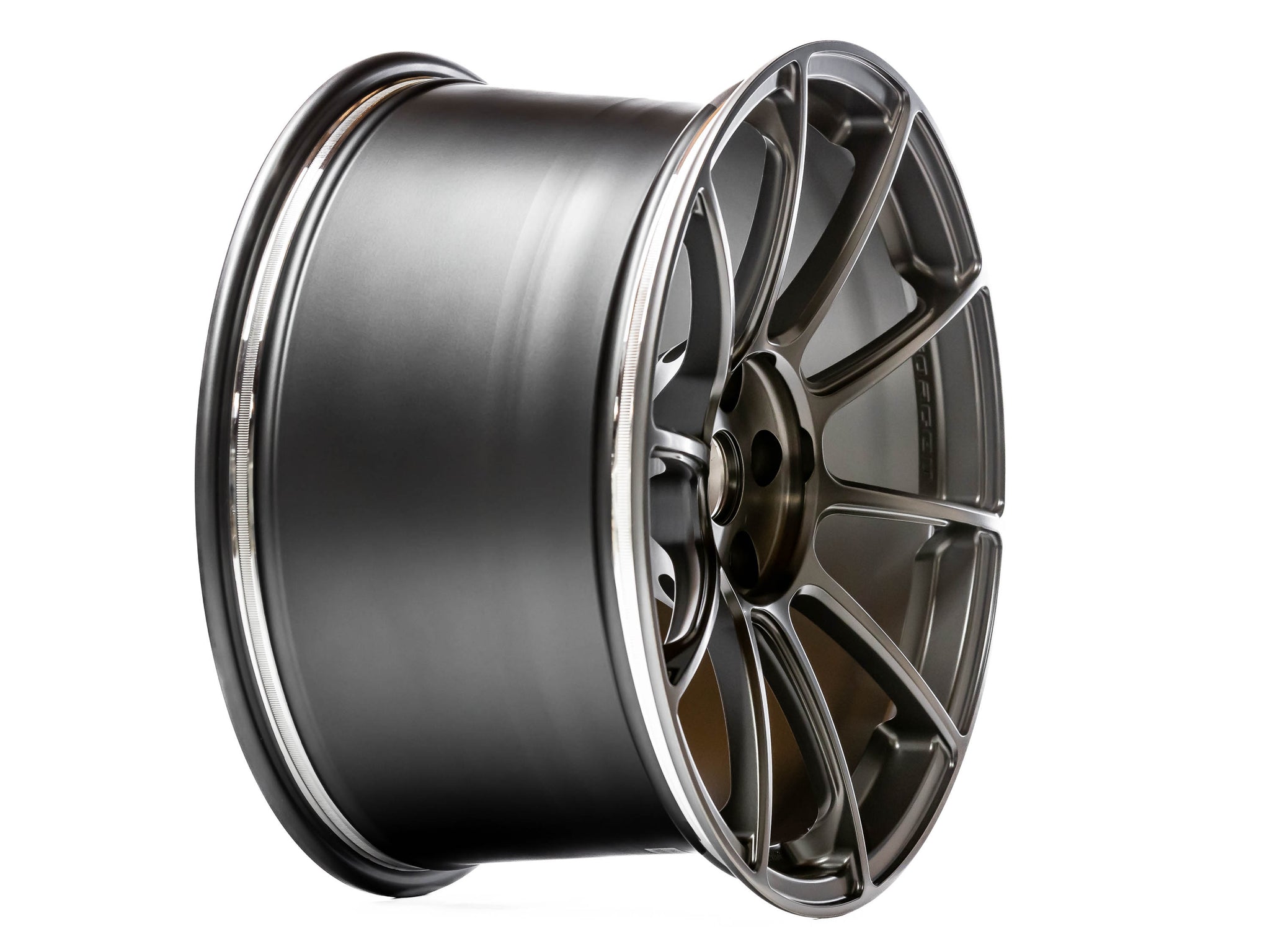

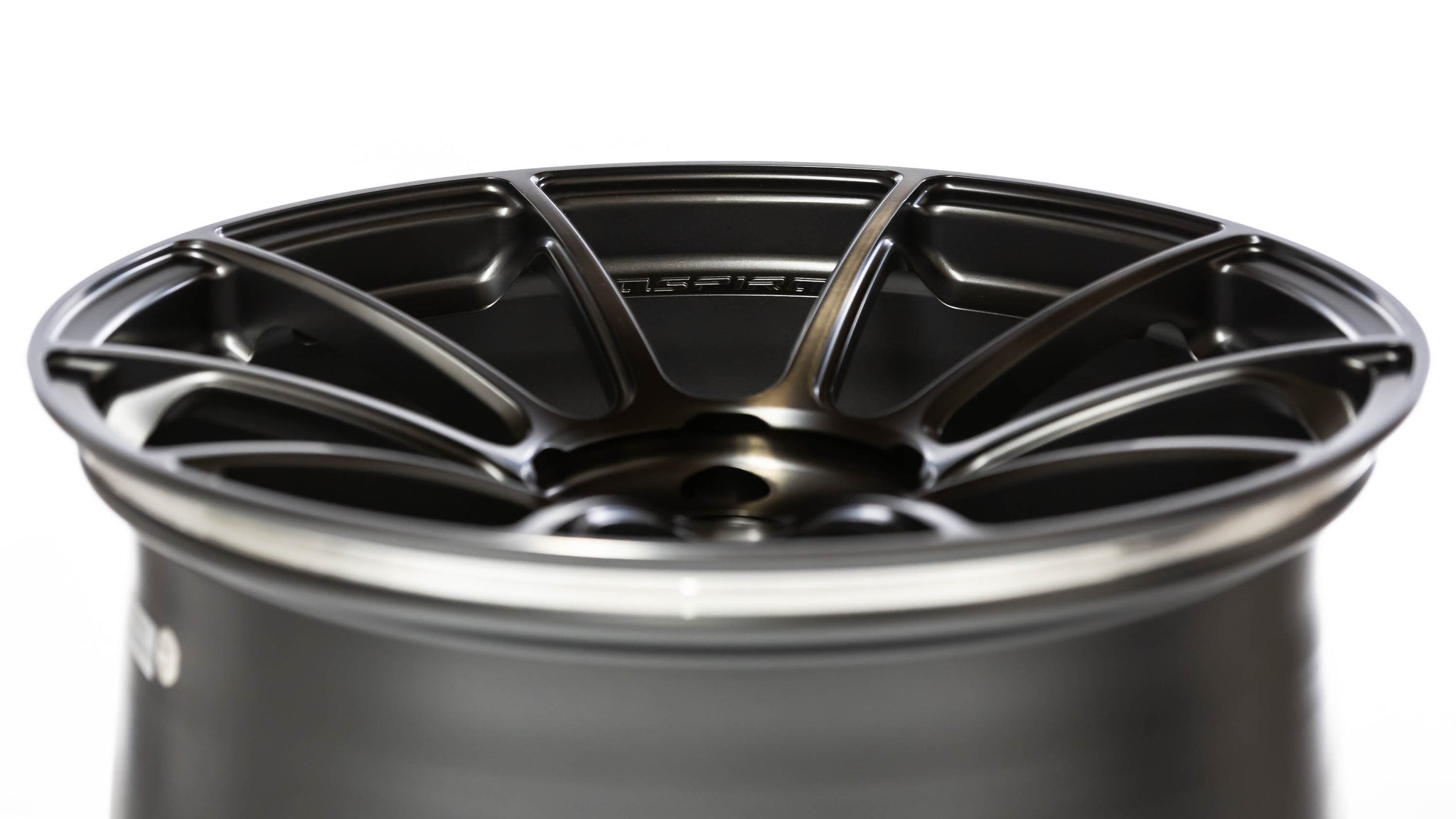

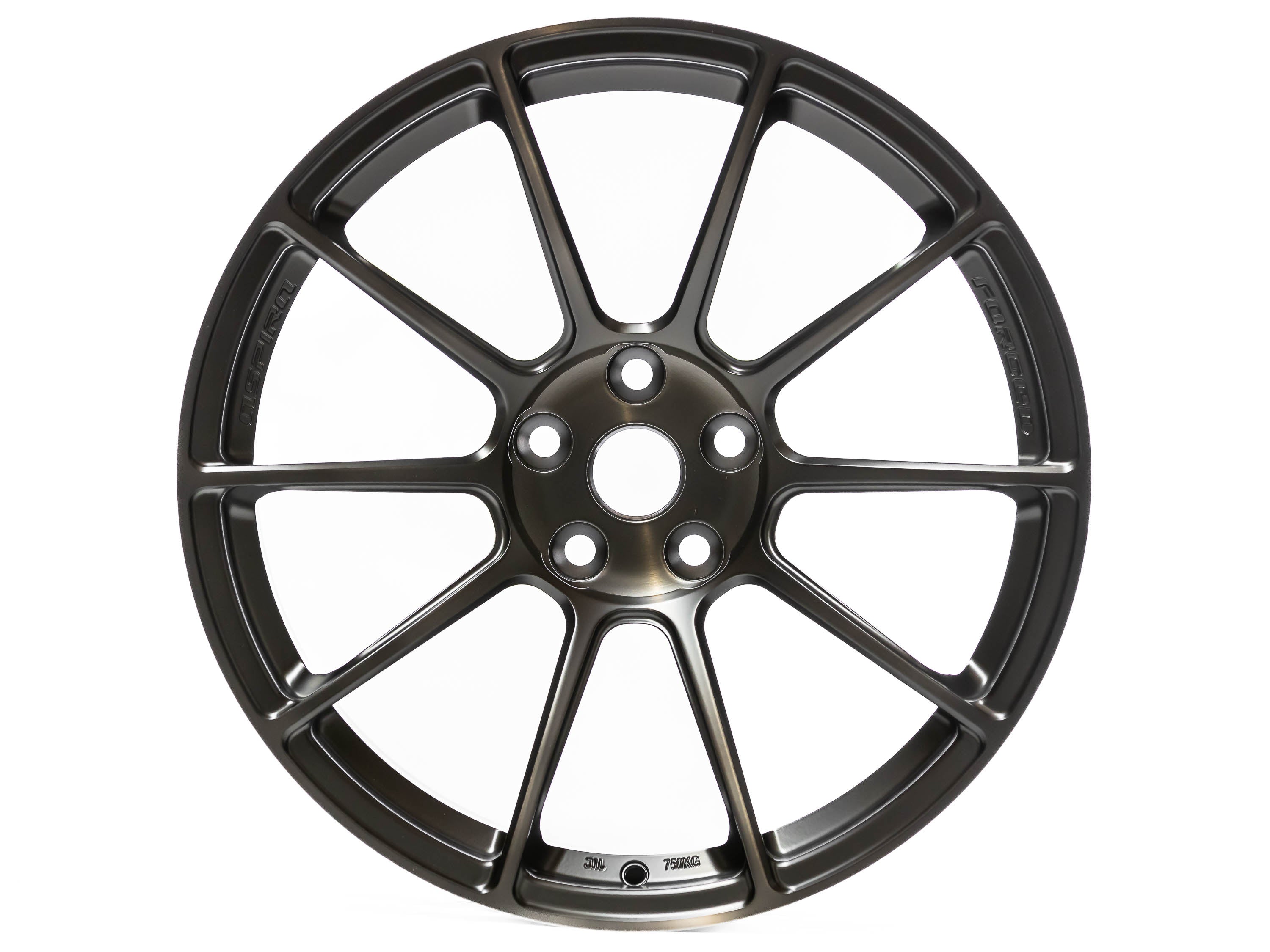

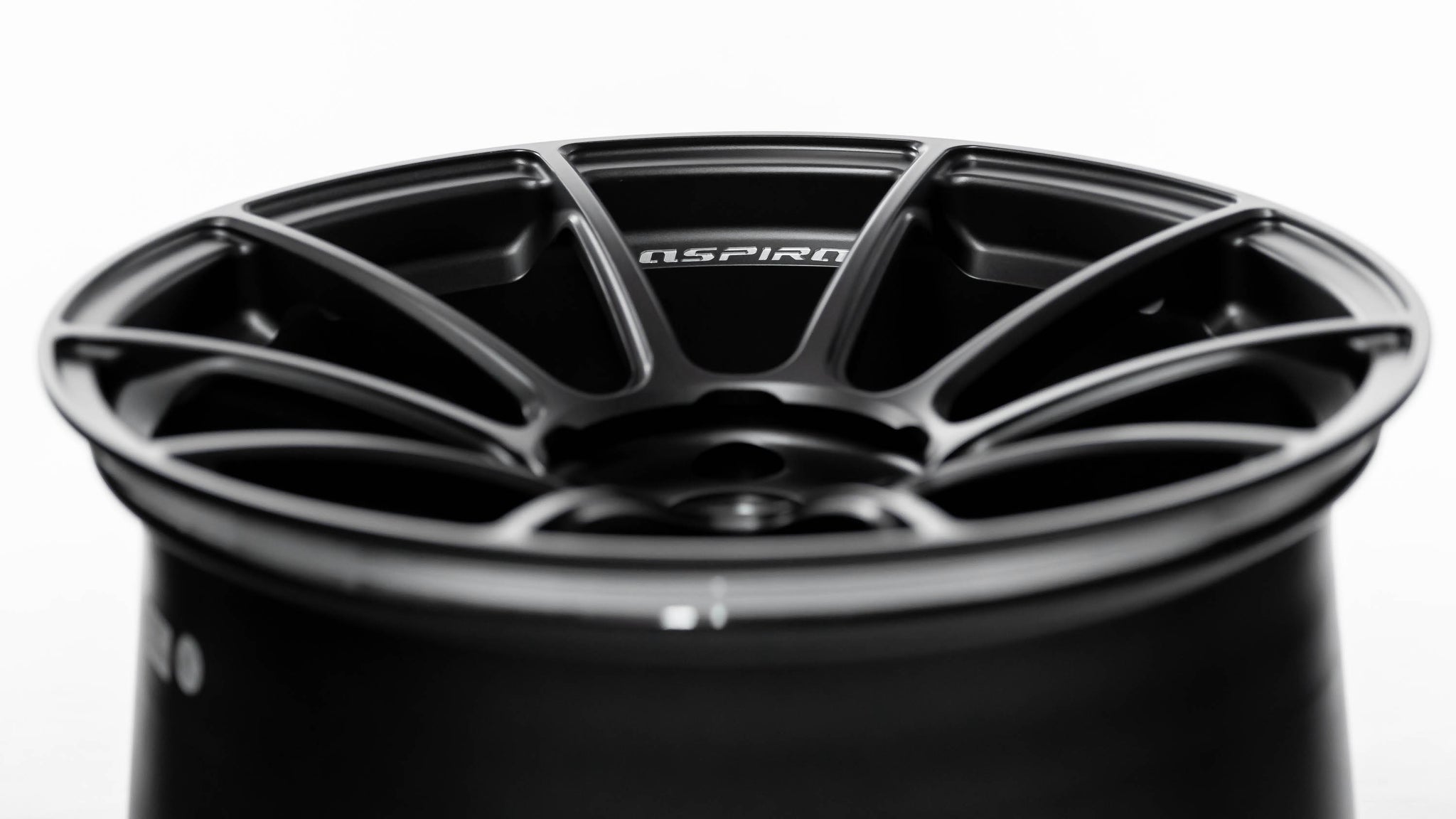

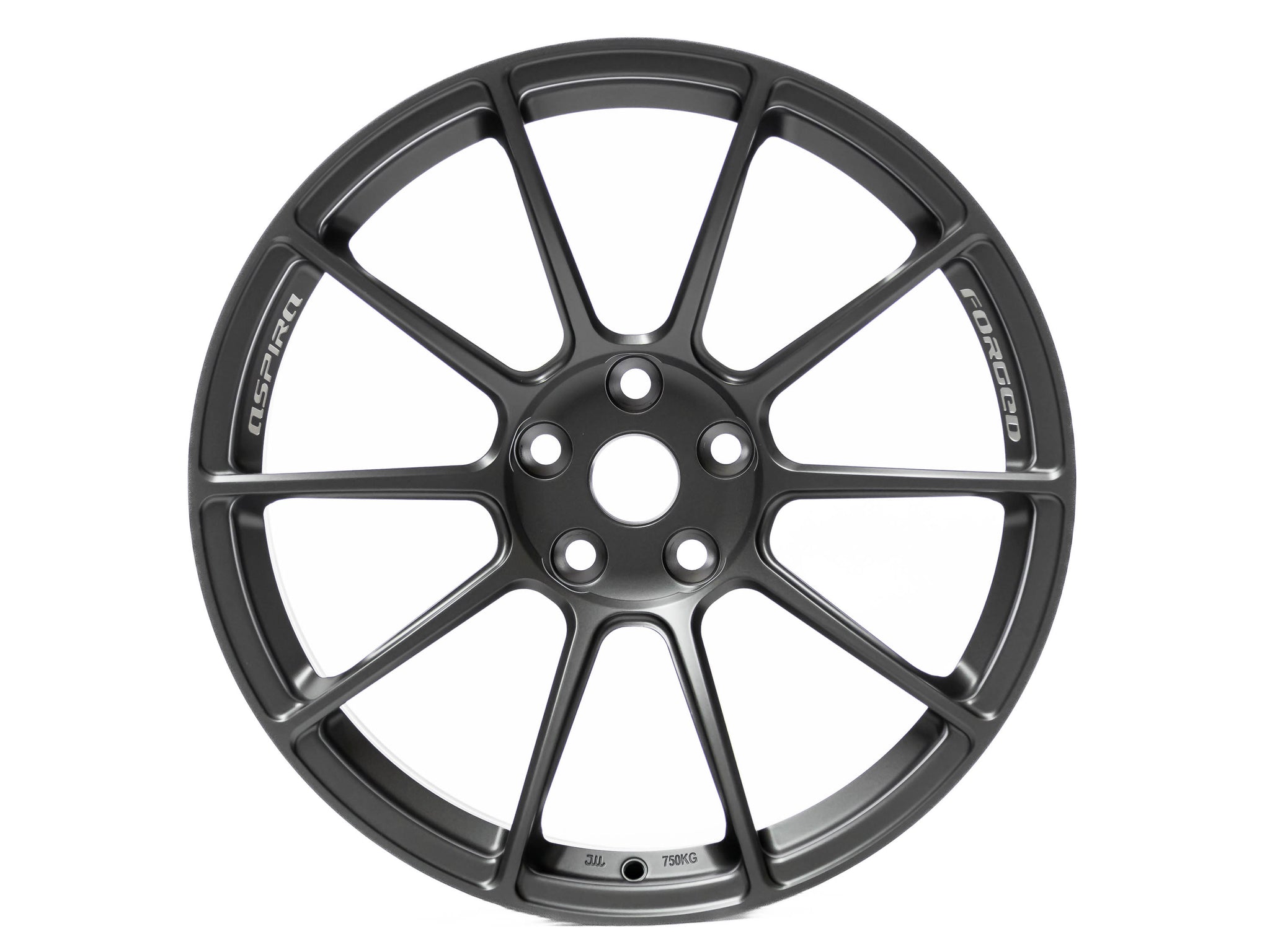

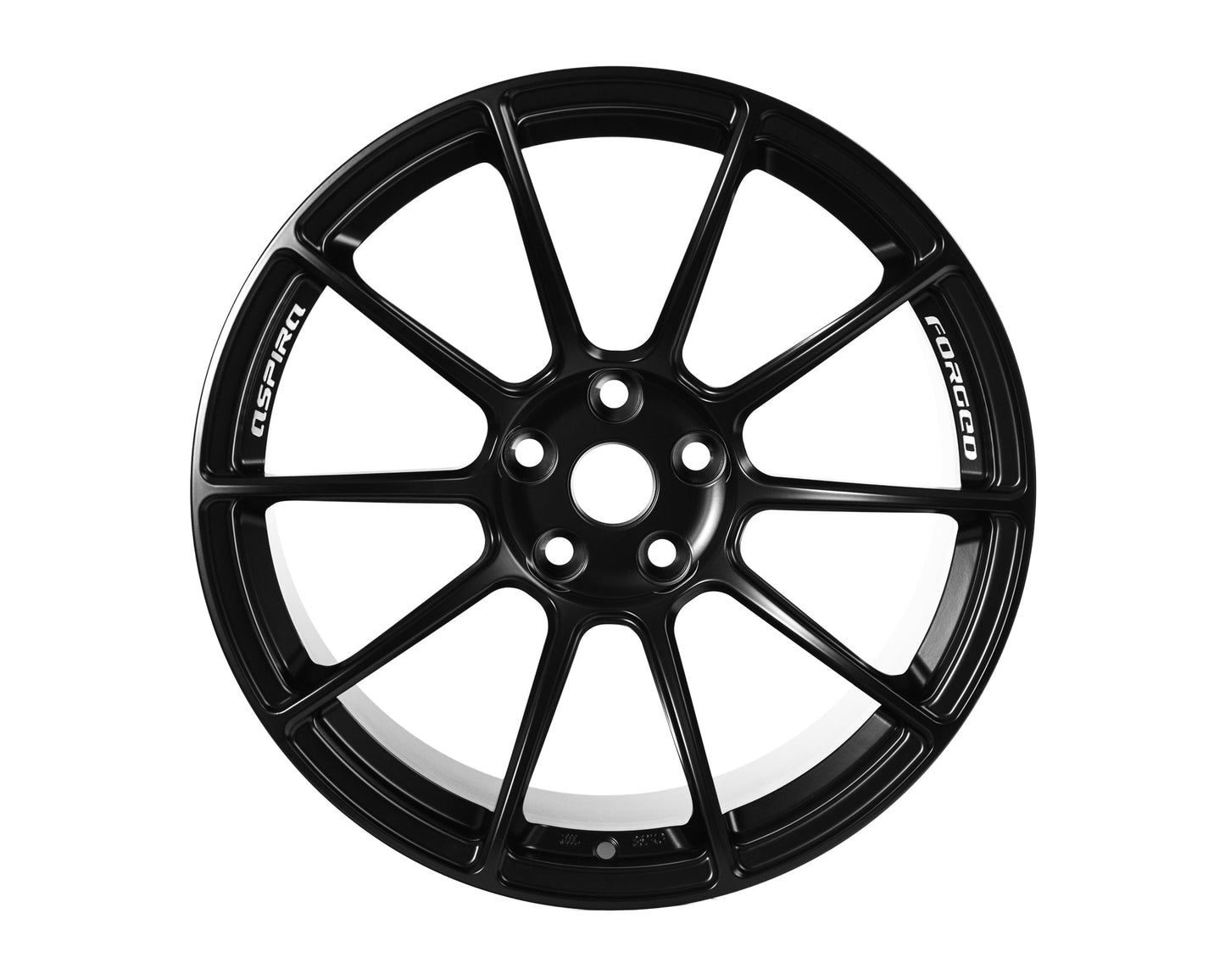

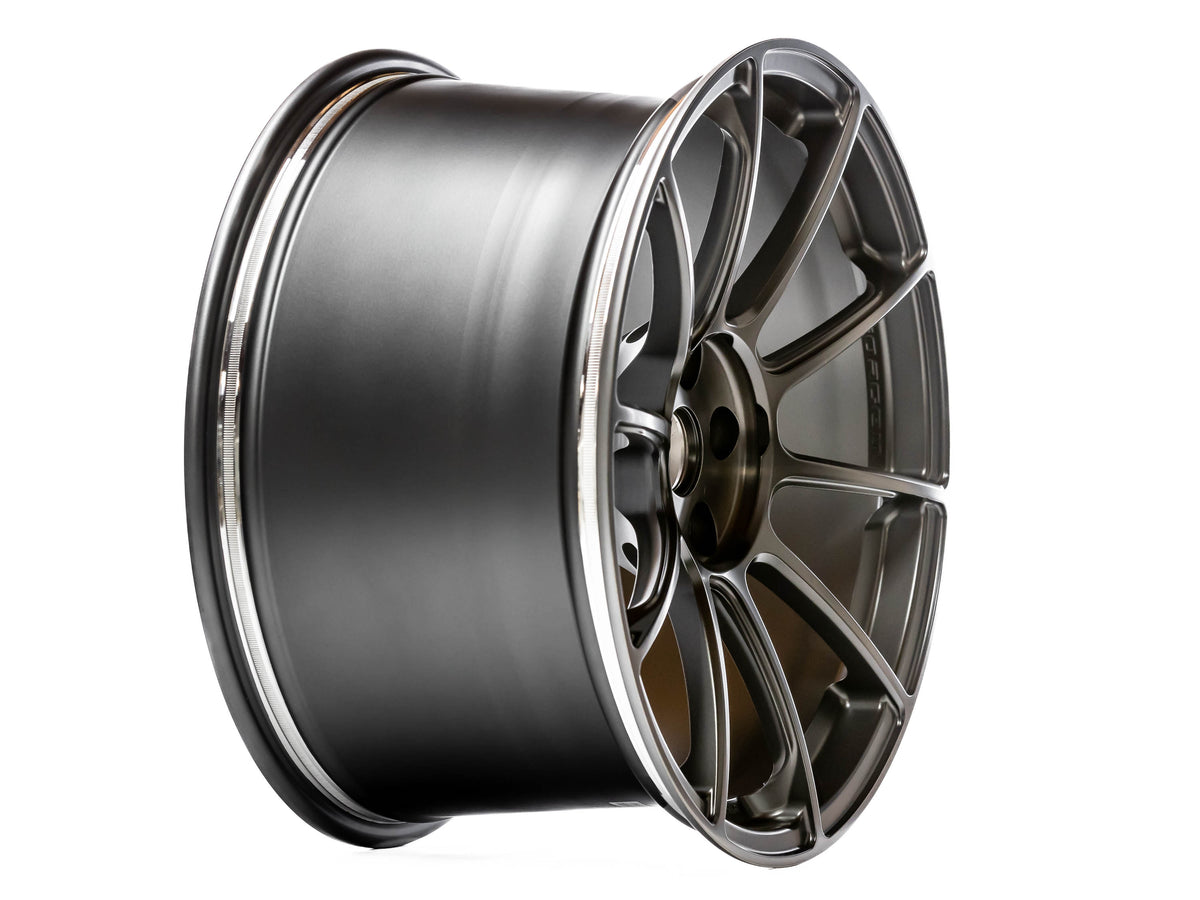

Aspira AF-10 is a truly forged wheel designed for the perfect balance of performance and aesthetics. Dubbed the "Sub2" we designed this wheel specifically to "attack the track". The 10 spoke design gives you classic racing heritage combined with balanced super light weight performance. The AF-10 gives you a wheel that is strong while giving you all of the lightweight performance you need in a track focused wheel. Aspira Design's forged wheels features traction improving bead seat knurling, beefed up inner rim flange for durability and strength, and logo machined accents. Manufactured with 10,000 TONS of pressure. All wheels are structurally tested according to JWL standards to ensure safety while you perform.
